เครื่องสแกนลายนิ้วมือควบคุมประตู F18
Access control Model F18
เครื่องสแกนลายนิ้วมือควบคุมประตู หน้าจอสีกว้าง 2.4 นิ้ว ดีไซด์สวยงาม รองรับการเชื่อมต่อแบบเครือข่าย (TCP/IP) ได้อย่างสมบูรณ์แบบ ZK Optical Sensor สามารถอ่านลายมือได้รวดเร็วเพียง 0.5 วินาที หัวอ่านแบบกระจกป้องกันการขีดข่วน รองรับลายนิ้วมือได้ถึง 3,000 ลายนิ้วมือ รองรับการ์ด 5,000 ใบ และสามารถบันทึกข้อมูลได้ 30,000 รายการบันทึก พร้อมรองรับการทาบบัตร Mifare Card เหมาะสำหรับองค์กรทั้งขนาดเล็ก ขนาดกลาง และเพิ่มความปลอดภัยในองค์กรของท่านให้มีคุณภาพยิ่งขึ้น
รายละเอียดเครื่องสแกนลายนิ้วมือควบคุมประตู
- เครื่องสแกนลายนิ้วมือจอสี TFT ขนาด 2.4 นิ้ว
- บันทึกข้อมูลได้ทั้ง ลายนิ้วมือ บัตร
- เครื่องสแกนลายนิ้วมือรองรับ 3,000 ลายนิ้วมือ
- เครื่องอ่านลายนิ้วมือรองรับการ์ด 5,000 ใบ
- เครื่องสแกนลายนิ้วมือเก็บข้อมูลได้ 30,000 รายการ
- ระยะเวลาในการประมวลผลภายใน 0.5 วินาที
- โหมดการตรวจสอบ ลายนิ้วมือ บัตร
- รองรับการเชื่อมต่อผ่าน RS232/485, TCP/IP, USB Host
Specification
Display : 2.8 inch Touch Screen
Fingerprint Capacity : 3,000 Templates
Card Capacity : 5,000 Cards
Log Capacity : 30,000 Transactions
Algorithm Version : ZK Finger V9.0 & V10.0
Communication : RS232/485, TCP/IP, USB Host
Access Control Interface : 3rd Party Electric lock,Door sensor,Exit button,Alarm,Door bell
Wiegand Signal : Input & Output
Functions : DST, Record Query, Anti-passback, External RS485 Fingerprint Reader, Printer (Optional)
Power Supply : DC12V 3A
Humidity(RH): 20%~80%
Operating Temp :-10℃ ~ +45℃
SDK and Software : Standalone SDK, ZKAccess3.5 Software
Dimension : 80(L)*183(W)*42(H) MM
Net Weight : 1.23 Kg
**********************************************************************
หมายเหตุ : เป็นราคาเครื่องเปล่า (ลูกค้าติดตั้งเอง) ไม่รวมค่าติดตั้ง
- ค่าติดตั้งและอบรมการใช้งาน กรุงเทพฯและเขตปริมณฑล จุดละ 2,000 บาท
(เดินสายแลนไม่เกิน 15 เมตร ไม่รวมการมุดท่อ ขึ้นฝ้า ร้อยท่อเฟล็ก)
- จ่ายเงิน 100 % หลังติดตั้งเสร็จ
- ตัวเครื่องรับประกัน 2 ปี หัวอ่านรับประกัน 3 ปี (ปีที่ 1 ฟรีค่าแรงซ่อม, ฟรีค่าอะไหล่ / ปีที่ 2 คิดค่าแรงซ่อม, ฟรีค่าอะไหล่) เครื่องเสียเปลี่ยนเครื่องใหม่ให้ภายใน 7 วัน
- ติดตั้งต่างจังหวัด คิดค่าเดินทางเพิ่มตามระยะทาง (กรุณาโทรสอบถาม)
**********************************************************************

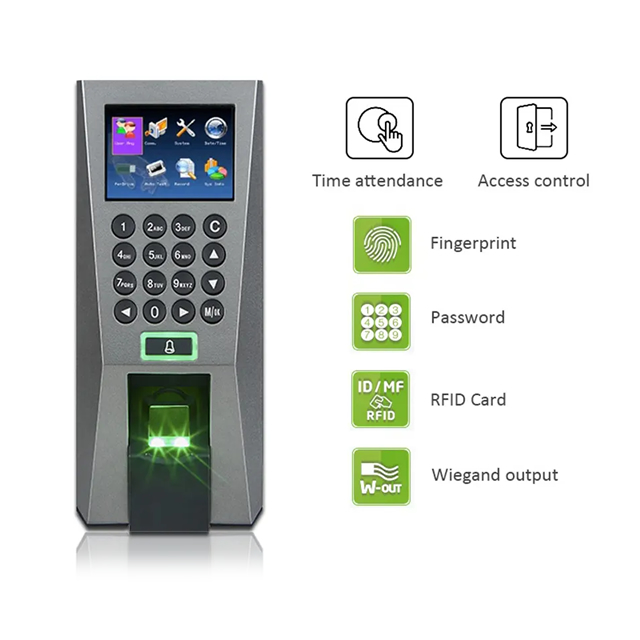

F18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The F18 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the TFT-LCD. The fingerprint image will display on the screen . That will guide the user to put the finger on to proper position and increase the recognition rate.TCP/IP and RS485 are available that the device can be used in different network.
item
|
value
|
Customized support
|
Software reengineering, OEM, ODM, Customized logo, Online technical support
|
Model Number
|
F18
|
Type
|
fingerprint
|
Software
|
ZKAccess3.5
|
Display
|
2.4-inch TFT LCD Color Screen
|
Fingerprint sensor
|
ZK Optical Sensor
|
Algorithm Version
|
ZKFinger V10.0
|
Fingerprint Capacity
|
3000
|
Card Capacit
|
10000
|
Log Capacity
|
100000
|
RF Card
|
EM/MF(optional)
|
Communication
|
TCP/IP, RS232/485, USB-host (WIFI ADMS optional)
|
Authentication Method
|
FP only, RF only, PIN only, FP/RF/PIN, PIN&FP, PIN&RF
|
Access Control Interface
|
Electric lock, Door sensor, Alarm, Exit button
|
Functions
|
DST,Record Query,Anti-passback,External RS485 fingerprint reader,Printer(Optional)
|
Dimensions (W×H×D)
|
Dimensions
|
Power Supply
|
12VDC 3A
|
