Specification

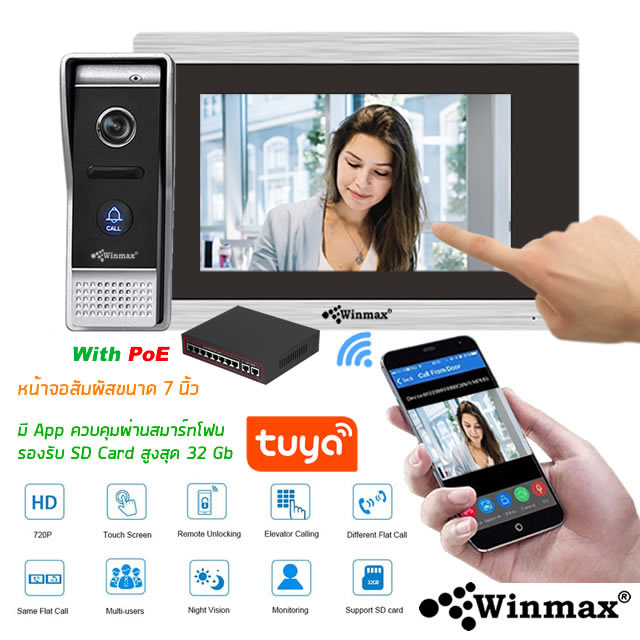

Indoor Monitor
Model : 87710TM-D
Monitor : 7″ TFT touch screen
Resolution : 800(H)*3(RGB)*480(V)
Connect Mode : CAT5 network cable
Intercom Mode : Duplex communication
Leave Message Time : 30s/60s/90s optional
Conversation Duration : Max.180s
Ringtone : Definition
Power Consumption : 400mA Max.
Power Supply : External Power DC 12V
Memory : Support Max.32GB SD card
Meterial : Wire drawing aluminum case
Operation Temp : -40℃ +50℃
Installation : Surface Mounted
Outdoor Unit
Model : 87203
Camera Sensor : 1/4″ CMOS, 420TVL 3.7mm lens
View Angle : pinhole lens:3.7mm 68º/ wide angle lens:2.8mm 110o
LEDs For Night LED : IR LEDs(120º)
Power Consumption : 200mA Max.
Power Supply : Supplied from indoor monitor
Material : Aluminum alloy panel
Waterproof : IP65
Operation Temp : -40℃ +50℃
Installation : Surface mount
Dimension : 48.49 x 128.29 mm.
* Not include POE Switch
รับประกันสินค้า 1 ปี
