Specification

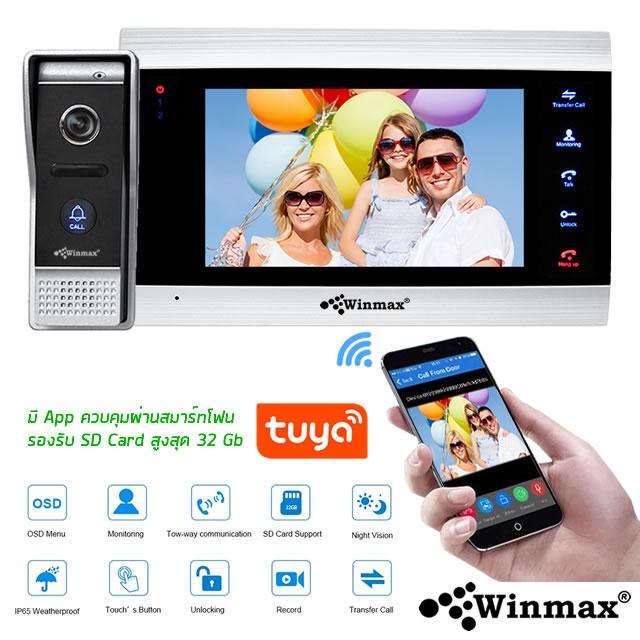

Indoor Monitor
Model : 84706-EM
Monitor : 7" TFT LCD video doorphone
Support : WiFi Application for Smartphone
Resolution : 800(H)*3(RGB)*480(V)
Memory : Support Max. 32GB SD card
Intercom Mode : Hands-free dual-way communication
Conversation duration : 120s
Keypad : Touch button
Power Consumption : 400mA Max.
Power Supply : External power DC12V
Support : 2 call panerl + 4 indoor monitor + 2 CCD camera & 2 alarm
Material : Acrylic wire drawing shell
Operation Temp : -10℃ +60℃
Installation : Surface mount
EM as suffix-sensor's key + memory
EMB as suffix-sensor's key + memory + built-in power
Dimension : 237.9 x 144.1 mm.
Outdoor Unit
Model : 84203-CP42
Camera Sensor : 1/4" CMOS, 420TVL 3.7mm lens
View Angle : pinhole lens:3.7mm 68º/ wide angle lens:2.8mm 110o
LEDs For Night LED : IR LEDs(120º)
Power Consumption : 200mA Max.
Power Supply : Supplied from indoor monitor
Material : Aluminum alloy panel
Waterproof : IP65
Operation Temp : -40℃ +50℃
Installation : Surface mount
Dimension : 48.49 x 128.29 mm.
รายละเอียดวีดีโอดอร์โฟน
ตัวจอภาพ
วีดีโอดอร์โฟนหน้าจอ LCD ขนาด 7 นิ้ว
วิดีโอความละเอียด 800 (H) * 3 (RGB) * 480 (V)
ระยะเวลาการสนทนา 120 วินาที ต่อครั้ง
วิดีโอดอร์โฟนหน้าจอปุ่มกดแบบสัมผัส
รองรับแอปพลิเคชันเรียกดูผ่านสมาร์ทโฟน*
หน่วยความจำบันทึกอัตโนมัติ
รองรับการบันทึกภาพสูงสุด 80-85 ภาพ
สนับสนุนสูงสุด การ์ด SD ขนาด 32GB
Video Door Phone มีฟังก์ชั่นปลดล็อคประตู
สามารถปรับระดับเสียงของกล้องและมอนิเตอร์ได้
มีฟังก์ชั่น IR หรือ LED night vision สำหรับบันทึกภาพตอนกลางคืน
สามารถตั้งค่าเสียงเรียกเข้าที่แตกต่างกันได้ (10 ระดับ)
มีฟังก์ชั่นตรวจจับการเคลื่อนไหวภายนอกอัตโนมัติ
Key-Unlock, เรียกดูภาพจากตัวกล้อง, บันทึกและรูปภาพ
ใช้พลังงาน 400mA DC12V
ขนาดตัวเครื่อง 237.9 x 144.1 มม. (ก*ส)
ตัวกล้อง
ตัวกล้อง Anti-vandal กล้องเลนส์รูเข็ม 3.7 มม. 1/4" CMOS
มุมมองกว้าง 68 องศา
ทำจากอลูมิเนียมอัลลอยด์ไม่เป็นสนิม
แผงอลูมิเนียมกันน้ำ Weatherproof IP65
ปรับระดับเสียงอินเตอร์คอมได้
มี IR LED Offset Lighting เรียกดูภาพตอนกลางคืน
ขนาดตัวเครื่อง 48.49 x 128.29 มม. (ก*ส)
รองรับอุปกรณ์อื่นๆ ได้มากถึง (ซื้อเพิ่ม)
Outdoor 2 ตัว
Electronic Lock 2 ตัว
Monitoring 4 ตัว
CCD Camera 2 ตัว
PIR 2 ตัว
รับประกันสินค้า 1 ปี
