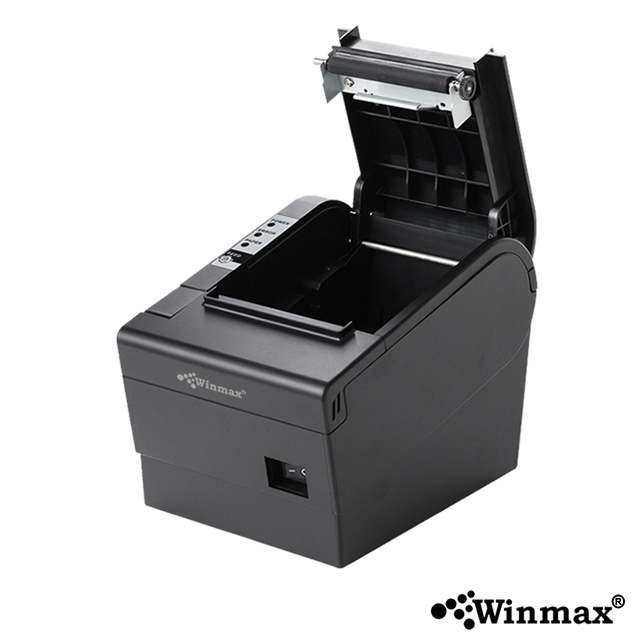

Direct Thermal printer 80mm with SDK/Driver Winmax-E802
เครื่องพิมพ์ใบเสร็จ ปริ้นสลิป ขนาด 80 มม. รองรับ LAN Winmax-E802
Specification
Print parameters
Printing Method : Thermal Line
Printing width : 72mm
Resolution : 576 Dots/Line Or 512 Dots/Line(8dots/mm,203dpi)
Interface : USB
Line Space : 3.75mm(Can adjust line space by command)
Line No. : Font A-32 Lines/Font B-42 Lines/Simple,traditional Chinese-16 Lines
Character : standard GB18030 simplified / traditional Chinese
Character Size : ANK character,Font A:1.5×3.0mm(12×24 dots)
Font B:1.1×2.1mm(9×17 dots) Simplified/Traditional Chinese:3.0×3.0mm(24×24 dots)
Barcode Character
Extended character set :
PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252
/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001
/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
Bar code : 1D Bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/CODE93/CODE128
Graphics printing
Graphics printing : Supports bitmap download and print ( each bitmap size Max.20K)
Cutter
Cutter Function : Full cut/Half cut
Paper
Type : Thermal
Width : 79.5±0.5mm
Diameter : ≤80mm
Feed method : Easy feed(Clameshell feed)
Special function
Oil Shield : Support
Bills not taken detect and remind : Support
Tibet line slot : Support
Bulit in loudspeaker : Support
Print Commands
Commands : ESC/POS
Power
Power Adaptor : Input:AC 110V/220V,50~60Hz / Output:DC 24V/2.5A
Cash Drawer output : DC 24V/1A
Buffer
Input Buffer : 2048K bytes
NV Flash : 256K bytes
Physical characteristics
Weight : 1.15KG
Dimension : 195*140*148(MM)
Environment
Working : Temp:5 ~ 45℃, Humidity:10 ~ 80%
Storage : Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)
Reliability parameter
Print Head Life : 100KM(print density≤12.5)
Cutter Life : 1000,000times
Software
Driver : Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1
