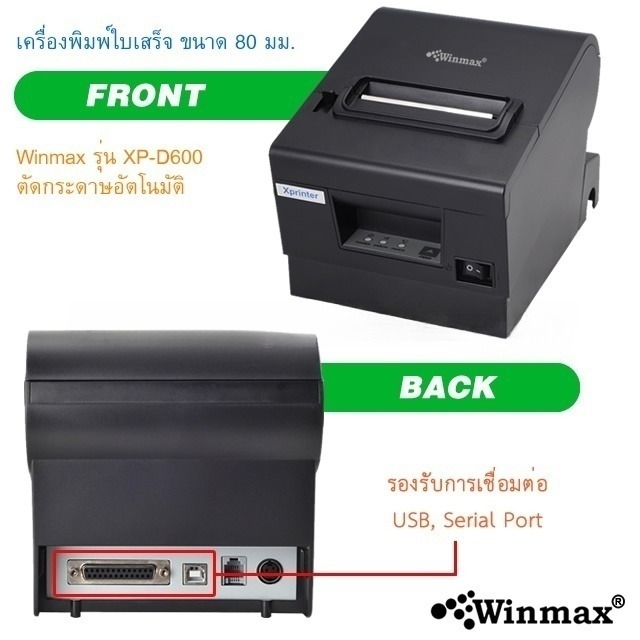

Thermal receipt printer with cutter Winmax-D600
เครื่องพิมพ์ใบเสร็จ ตัดกระดาษอัตโนมัติ ขนาด 80 มม. รองรับคิวอาร์โค้ด
Specification
Printing method : Direct thermal
Printing speed : 300 mm/s
Resolution : 203 Dpi
Paper width : 57.5 ± 0.5 mm. 79.5 ± 0.5 mm.
Printable area : 72 mm. (adjustable by commands)
Maximum paper diameter : 80 mm.
Paper thickness : 0.06 - 0.08 mm.
Column capacity : 384 mm dots/line (58mm.) 576 dots/line 512 dots/line (80 mm.)
Line space : 3.75 mm. (Changeable by commands)
Commands : Compatible with ESC/POS
Interface type : USB + Serial + Lan
Character size : ANK, Font A : 12x24 dots, Font B : 9x17 dots, simplified/traditional Chinese : 24x24 dots
Dimension : 194.5 x 145 x 147 mm. (DxWxH)
Gross wight : 1.45 Kg
Barcode : UPC-A / UPC-E / JA(EAN13) / JAN8(EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
2-Dimension code : QR Code / PDF417
Code page : PC347(Standard Europe), Katakana, PC850(Multilingual), PC860(Portuguese), PC863(Canadian-French), PC865(Nordic), WestEuropeGreek, Hebrew, East Europe, Iran, WPC1252, PC866(Cyrillic#2), PC852(Latin2), PC858, Iranll, Latvian, Arabic, PT151(1251)
Cutter : Partial
Cutter life : 1.5 million cuts
Print head life : 100 KM.
Input buffer : 2048 Kbytes
NV Flash : 256 Kbytes
Power adaptor : AC 110V/220V, 50~60 Hz
Power source : DC 24V/2.5A
Input voltage : DC 24V/2.5A
Cash drawer output : DC 24V/1A
Work environment : Temperature : 0~45 ํC, humidity : 10~80 RH%
Storage environment : Temperature : -10~60 ํC, humidity : 10~90 RH%
Operating system : Win XP / Win Vista / Win 7 / Win 8 / Win 8.1 / Win 10
สินค้ารับประกัน 1 ปี / Warranty 1 Year
