Product detail :
|
|

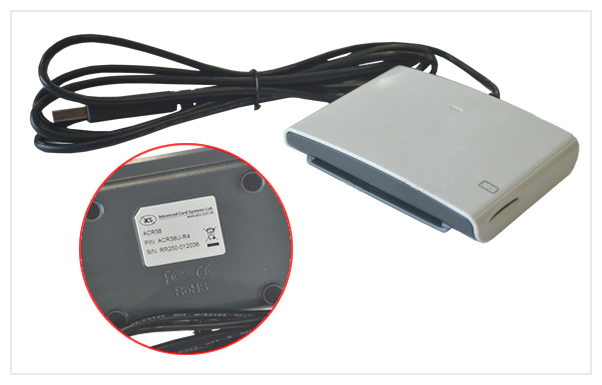

Smart card reader/Writer/ Memory Card Reader ACR38U-R4
เครื่องอ่านบัตร Smart card ACR38U-R4
Feature:
Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) card
Supports CAC (Common Access Card) *
Supports PIV (Personal Identity Verification) Card*
Supports microprocessor cards with T=0 or T=1 protocol
Supports memory cards:
Cards following the I2C bus protocol (free memory cards), including:
Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
SGS-Thomson: ST14C02C, ST14C04C
Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
Cards with intelligent 256 bytes EEPROM and write protect function, including: SLE4432, SLE4442, SLE5532, SLE5542
Cards with intelligent 1K bytes EEPROM and write-protect function, including: SLE4418, SLE4428, SLE5518, SLE5528
Cards with '104' type of EEPROM non-reloadable token counter cards, including: SLE4406, SLE4436, SLE5536, SLE6636
Cards with secure memory IC with password and authentication, including: AT88SC153, AT88SC1608
Cards with Intelligent 416-Bit EEPROM with internal PIN check, including: SLE4404
Cards with Security Logic with Application Zone, including: AT88SC101, AT88SC102, AT88SC1003
Supports PPS (Protocol and Parameters Selection)
Features Short Circuit Protection
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Applications
e-Government
Banking & Payment
Network Security
Access Control
e-Purse & Loyalty
Transportation
Technical Support:
|
Dimensions |
ACR38U-I1: 72.2mm (L) x 69.0mm (W) x 14.5mm (H)
ACR38U-H1: 71.5mm (L) x 80.0mm (W) x 80.0mm (H)
ACR38U-J1: 65.5mm (L) x 68.2mm (W) x 13.7mm (H) |
|
Interface |
USB 2.0 Full Speed |
|
Supply Voltage |
Regulated 5V DC |
|
Supply Current |
Max. 50mA |
|
Operating Temperature |
0-50°C |
|
CLK Frequency |
4 MHz |
|
Smart Card Interface Support |
-
ISO- 7816 Class A, B and C ( 5V, 3V, 1.8V )
-
CAC & PIV Smart Cards
|
|
Compliance / Certifications |
-
EN60950/IEC 60950, ISO 7816, FIPS 201*, TAA*, CE, FCC, UL, KC*, VCCI, PC/SC, CCID, EMV 2000 Level 1, RoHS, REACH, USB Full Speed
-
Microsoft WHQL: 2000, XP, Vista, 7, 8, Server 2003, Server 2008, Server 2008 R2, Server 201
|
|
Operating System Support |
-
Win98, Win ME, Win NT 4.0, Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7, Win 8
-
Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64, Win 8 x64, Win 2012 x64
-
Mac
-
Linux
-
Android™ 3.1 and above
|
* Warranty 3 month
|
|
|
|
