Product detail :
|

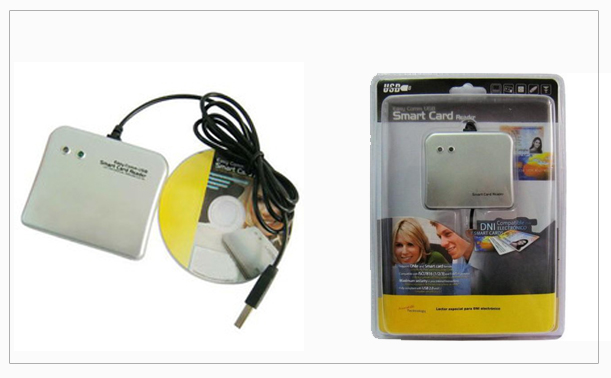

EMV PC/SC USB Smart Card Reader Writer
เครื่องอ่านบัตรประชาชน เครื่องอ่านบัตรสมาร์ทการ์ด
Feature:
-
Support the Universal Serial Bus Specification
-
Compliance with Microsoft PC/SC specification and Plug-and-Play
-
Support Microsoft Smart Card for Windows
-
Meet Microsoft WHQL USB Smart Card Reader requirements
-
Include WDM driver to work on Windows 98 and Windows 2000
-
Support to, T1 protocol, I2C memory card hLE4418, SLE4428, SLE4432, SLE4442, AT88sc1608 and AT45D041 card
-
Windows 98SE/ME/2000/XP/VISTA
-
No external power supply required
-
Multitask for keyboard and card reade
-
CE/RoHs/EMV
Item No.:
|
C-SMR-0001
|
Read and Write:
|
Smart/DNIE,ATM and SIM card.
|
Host Interface:
|
• Full speed USB (12Mbps)
• Bus powered device
• CCID compliant
|
Smart Card Interface:
|
• T=1, T=0 protocol support
• Memory card support through SCM MCARD API*
• Communication speed up to 344 kbps (PPS, FI parameter)
• Frequency up to 8 MHz (PPS, DI parameter)
• Support ISO/IEC 7816 Class A,B and C (smartcards working at 5v,3v and 1.8v)
• Support read and write on Smartcard with ISO/IEC 7816-1,2,3,4,protocol T=0 and T=1 microchips
|
Smart Card Connector:
|
• 8 contacts - ISO 7816 location
• 100,000 insertions
• Short circuit protection
• Friction contact
|
Human Interface:
|
• LED Red:ON
•LED Green:Working
|
Cable/Power :
|
• Cable: 0ne meter long with USB type A connector
• Power through USB bus
|
Dimensions
Weight :
|
(L)71*(W)61*(H)16 mm
50 g
|
Operating Conditions :
|
• Temperatur: 0o to 50o
• Humidity(%):90 (non-condensing)
|
Operating System :
|
• Windows® 98SE, ME, 2000, Server 2003, XP 32/64, Vista 32/64,windows7
• Windows® CE 3.0, 4.1, 4.2, 5.0
• MacOS ((10.4 and above no need driver, but need install the app tools)Solaris,Linux 32-bit (2.4x, 2.6x)/64-bit,RedHat,Fedora,Debian,Ubuntu,Alinex,CaixaMagica
|
API :
|
• PC/SC
• CT-API (thru wrapper on top of PC/SC)
|
Approvals :
|
|
|
|
|
|
